Product List

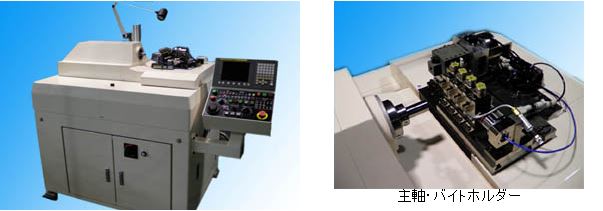

Ultra-precision lathe（Hydrostaic slide）　ＧＬ－３００(From 2011/4～）

Newly developed ultra-precision lathe.Hydrostaic enable high-precidion cutting with a well-defined grind.

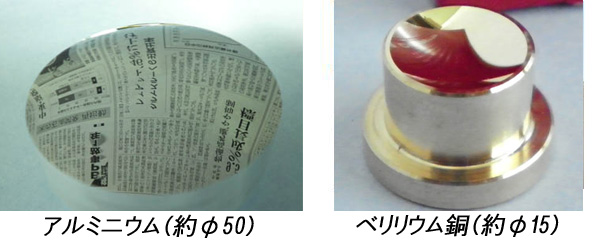

Processing sample
Specification
Spindle type Hydrostatic Air Bearings
Driving system Linear Motor
Sliding surface Hydrostaic slide
Control Axis Ｘ axis・Ｚaxis・Ｃ axis
Drive shaft stroke Ｘ２００㎜　　Ｚ１３０㎜
Min. setting unit Ｘaxis・Ｚaxis：0.001μm　Ｃaxis：0.001degree

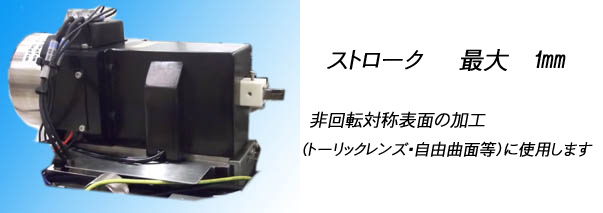

Option Fast speed tool servo unit（ＦＴＳ）

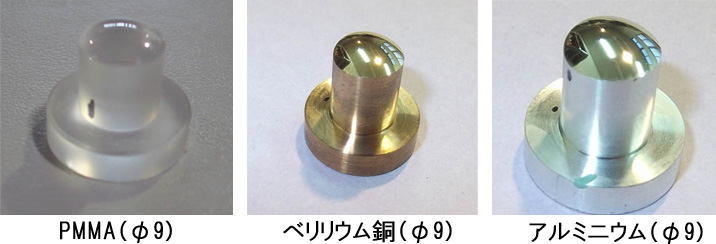

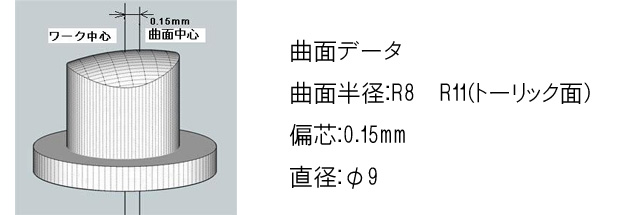

Free-form surface processing sample
